D8-018

Technical Specifications
Model:D8-018
Input:DC57.6V
Current:350mA±5%
Brand:OSRAM
LED Quantity:18 Pcs
LED Power:21.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 1870 Lm
Cool white/Flux:5000K±300K / 2340 Lm
Beam Angle:20°
Size:∮118x H92mm
Cut-out size:∮108mm
Color:White
Specifications
21.5W
  • Spot lights manufacture, Led spot light factory, Spot light factory, Spot down light, Ceiling light

Size

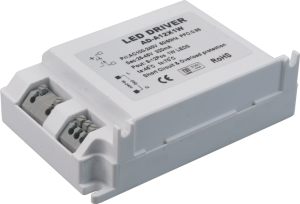

Driver

9A138-Z00

Input: AC100~240V / 50~60Hz
Output: DC45~65V / 320mA
Max. 15~18W
Size: 102 x 66 x 30mm
Certification: CE

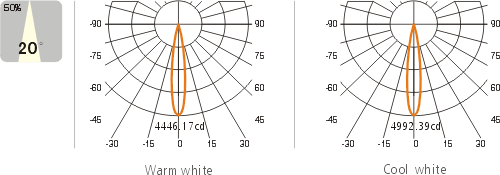

Photometric Data


Substitute
