D3-006
Technical Specifications
| Model: | D3-006 |
| Input: | DC20.4V |
| Current: | 700mA±5% |
| Brand: | OSRAM |
| LED Quantity: | 6 Pcs |
| LED Power: | 15W |
| CCT: | 2700K~6000K |
| Warm white/Flux: | 3000K±200K / 1060 Lm |
| Cool white/Flux: | 5000K±300K / 1325 Lm |

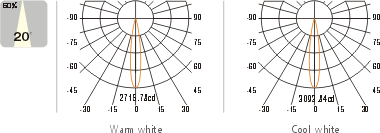

| Beam Angle: | 20° |

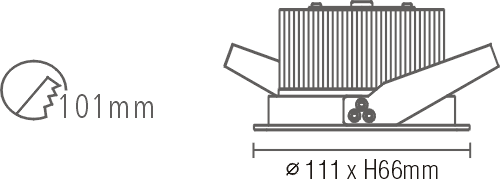

| Size: | ∮111 x H66mm |
| Cut-out size: | ∮101mm |
| Color: | Silver |
Specifications
Size

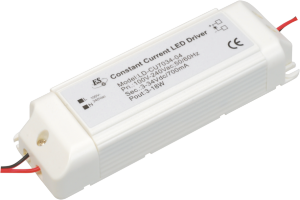

Driver
9A145-Z00
Input: AC100~240V / 50~60Hz
Output: DC3~34V / 700mA
Max. 3~18W
Size: 140 x 45 x 25mm
Certification: CE
