D5-011

Technical Specifications
Model:D5-011
Input:DC3.4V
Current:700mA±5%
Brand:OSRAM
LED Quantity:1 Pc
LED Power:2.5W
CCT:2700K~6000K
Warm white/Flux:3000K±200K / 175 Lm
Cool white/Flux:5000K±300K / 220 Lm
Beam Angle:20°

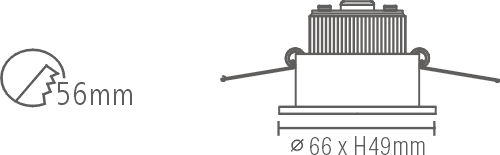

Size:∮66 x H49mm
Cut-out size:∮56mm
Color:Silver
Specifications
2.5W
  • Spot Light, LED spot lights, Ceiling light, Spot light factory, Down light
  • Spot Light, LED spot lights, Ceiling light, Spot light factory, Down light
  • Spot Light, LED spot lights, Ceiling light, Spot light factory, Down light

Size

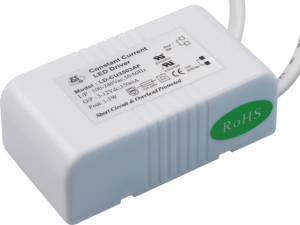

Driver

9A094-Z00

Input:AC100~240V / 50~60Hz
Output:DC3~12V /700mA
Max.3W x 2
Size:65 x 34 x 24mm
Certification: CE . UL

Photometric Data
